A DUE product range includes mixers for the production of finished syrup, finished beverage such as soft drinks or flat drinks. Available in stainless steel Aisi 304 / Aisi 316 and equipped with any type of accessory and electronic control instrument.

To obtain the finished syrup, the sugar syrup, concentrates and minor ingredients must be accurately dosed and mixed. Depending on the type of recipe, A DUE propose EASY.InLine (continuous running in-line dosing system) or EASY.Core (discontinuous “batch” preparation and dosing system).

For the in-line and continuous blending of juices and soft drinks, A DUE offer EASY.InLine2, which ensures excellent quality and stability of the finished product (precisions of ± 0.05° Bx are reached on the final drink).
The dosage of the finished syrup in water is kept constantly under control by flowmeters and ratio controllers. Special static mixers provide homogeneous mixing.

EASY.Core is a preparation and dosing unit that can simultaneously or sequentially transfer the single components for the preparation of finished syrup or finished drink. Several recipes can be prepared at the same time.

EASY.Core is a compact single unit consisting of a double set of mixers and tanks working alternately.

These mixers are used to dissolve the powders or empty the liquid concentrates.

The capacity and number of mixers are defined according to the recipe and production capacities requested by the customer.

With EASY.Core sugar syrup, liquid sugar and water are dosed and transferred, too.

It is also possible to equip the unit for the transfer and dosage of concentrates or juices packed in 1000 l. pallet tanks or stored in existing tanks.

The main feature of the EASY.Core is the total control of all the ingredients transferred into the preparation tank through different flowmeters (mass), run by special software tuned by A DUE.

EASY.InLine is a completely automatic in line and continuous dosing and mixing unit with centralized process control.

The electronic instruments and the mass or magnetic flowmeters ensure dosage constancy and precision.

EASY.InLine mixes in line and simultaneously more than ten different premixed basic products or ingredients.

EASY.InLine can also be used for the preparation of finished drink: from fruit juices and nectars to soft drinks and from tea to sports drinks.

EASY.InLine has a production capacity that can vary between 5,000 and 70,000 l/h of syrup or finished drink.

To ensure total quality of the product being processed, EASY.InLine double checks in line and in parallel the fundamental values (concentration, temperature, °Bx, acidity) of the single inlet ingredients and also double checks the °Bx and pH values of the finished syrup coming out of the machine.

Thanks to the use of high precision instruments, it is possible to reach a precision of ± 0.02 °Bx and ± 0.2 pH units.

EASY.InLine is characterized by its high degree of automation and performance stability, its total recovery of concentrates at the end of production, the reduction of production waste and its CIP cleaning cycle presetting.

Using a PC it is possible to constantly keep under control all the parameters and production variables and it is easy to use thanks to an operator interface controlled by advanced software.

A DUE EASY.InLine2 is an automatic in line mixing premix for the production of soft drinks or flat drinks, suitable for connection to any type of filler.
Precision, reliability, flexibility, ease of management, compact dimensions, construction on a self-supporting frame and simplicity of installation and start-up are the strengths of the A DUE BLENDER.

EASY.InLine2 is available in different versions with production capacities of 5,000 to 60,000 l/h. Each model is able to adapt itself with the utmost flexibility to flow rate variations requested by the filling group during format changeover.

EASY.InLine2 also reduces syrup waste to a minimum during the initial and final production phases (flavour change), thanks to integrated systems which read the water/syrup thresholds precisely.

EASY.InLine2 is preset for connection to the closed circuit cleaning CIP UNIT. Furthermore, the special hydraulic circuit provides considerable hygienic/sanitary improvement compared to the traditional premixes with dosing pumps. The use of high quality components reduces maintenance costs by up to 80%.

EASY.Core – INGREDIENT MANAGEMENT

sched-batch-controls
EASY.Core

System for sequential dissolving and dosing of minor ingredients, concentrates and juices for final syrup preparation.

Simultaneous or sequential batch dosing with the possibility of handling from 3 to 7 ingredients.

Nominal production capacity: 5.000 ÷ 60.000 l/h.

sched-batch-controls
Full control of all the ingredients transferred by means of the flow measuring instruments (mass type) to the preparation tank.

sched-batch-controls
Design optimized for high efficient cleaning in place.

Total product recovery.

Final product formulation management.

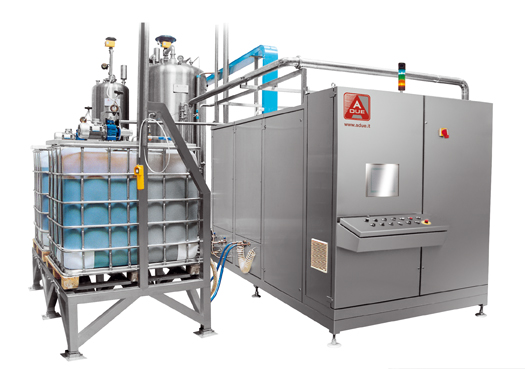

EASY.InLine – IN LINE INGREDIENT DOSING

scheda tecnica Dosiline

EASY.InLine

Automatic unit for continuous dosing and blending suitable for the final syrup preparation, in monoblock execution.

Systems customizable basing on the number of ingredients to dose (typically 4 or 5 ingredients).

Nominal production capacity: 5.000 ÷ 60.000 l/h.

scheda tecnica Dosiline

Outlet °Bx variation (steady production) σ=0,02 °Brix.

Outlet °Bx variation (transitional phases) σ=0,1 °Brix.

scheda tecnica Dosiline

Enhanced control systems for key parameters (flow capacity, °Brix).

scheda tecnica DosilineNo additional tank required.

Total product recovery (with water or gas).

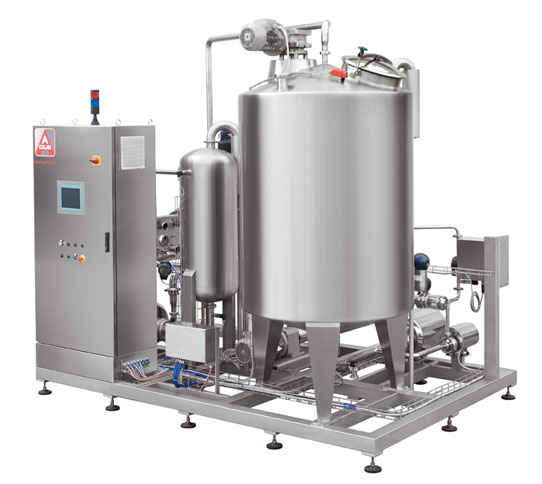

EASY.InLine2 – IN LINE BLENDER

scheda tecnica in line blenders

EASY.InLine2

Unit for in-line and continuous blending of juices and non-carbonated soft drinks in general.

Final beverage Brix-degree control with feedback correction possibility.

Nominal production capacity: 5.000 ÷ 60.000 l/h.

scheda tecnica in line blenders



Outlet °Bx variation (steady production) σ=0,02 °Brix.

Outlet °Bx variation (transitional phases) σ=0,1 °Brix.

scheda tecnica in line blenders

Suitable for “clear” juices/products and those with pulps.

Modular and customizable system basing on the ingredients contained in a certain recipe.

scheda tecnica in line blenders

Quick flavor change over.
