Ingredient management

A wide range of solid or liquid minor ingredients is used to prepare the drinks.

A DUE can run the receiving, storage, dosage and transfer of all solid and liquid ingredients.

EASY.Core is a preparation and dosing unit that can simultaneously or sequentially transfer the single components for the preparation of finished syrup or finished drink. Several recipes can be prepared at the same time.
EASY.Core is a compact single unit consisting of a double set of mixers and tanks working alternately.

These mixers are used to dissolve the powders or empty the liquid concentrates.

The capacity and number of mixers are defined according to the recipe and production capacities requested by the customer.

With EASY.Core sugar syrup, liquid sugar and water are dosed and transferred, too.
It is also possible to equip the unit for the transfer and dosage of concentrates or juices packed in 1000 l. pallet tanks or stored in existing tanks.
The main feature of the EASY.Core is the total control of all the ingredients transferred into the preparation tank through different flowmeters (mass), run by special software tuned by A DUE.

For the batch or continuous dissolving of powder or granular ingredients, A DUE also offers in its production range mixers with high speed stirrers, highly efficient multi-blade mixers, Venturi effect mixers, triblenders or hydrodynamic hoppers.

EASY.Core – INGREDIENT MANAGEMENT

sched-batch-controls

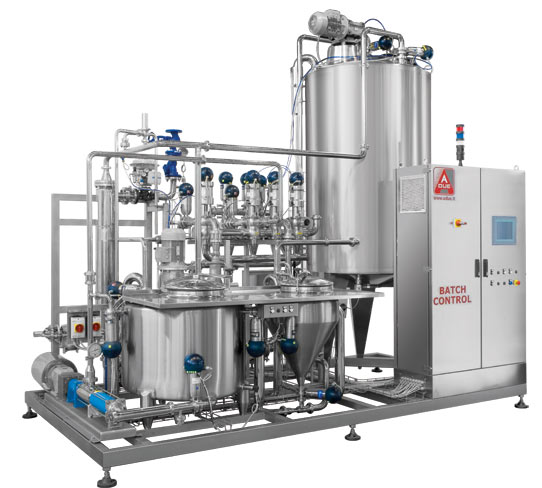

EASY.Core

System for sequential dissolving and dosing of minor ingredientes, concentrates and juices for final syrups preparation.

Simultaneous or sequential batch dosing with the possibility of handling from 3 to 7 ingredients.

Nominal production capacity: 5.000 ÷ 60.000 l/h.

sched-batch-controls
Full control of all the ingredients transferred by means of the flow measuring instruments (mass type) to the preparation tank.

sched-batch-controls
Design optimized for high efficient cleaning in place.

Total product recovery.

Final product formulation management.
